POWERMIX Pro Side Door

The Powermix Pro Side Door range of complete diet feeders comprise of four models with a single vertical auger and have a capacity from 9m³ to 15m³.

The uniquely designed central auger carries out two main functions of chopping and mixing. The Chopping function is carried out by a series of blades fixed to the auger combined with stationary blades mounted to the corners of the tub. The mixing is by the auger lifting the mixture up the centre if the tub and down the sides of the tub and continuing the cycle until the desired mix is achieved.

Powermix Pro Side Door 9m³

The single auger mixer has a capacity of 9m³ which would hold approximately 4,000Kg depending on the dry matter of the feed. Its compact single axle design allows the machine to be navigated around and into tight buildings.

The simple door design minimizes the use of moving parts and is ideal for on-floor feeding or into shallow troughs.

An adjustable feed out tray is fitted as standard, enabling feed to be delivered up to 2’4”. An additional door is available for the rear left side to enable feeding on both sides. Tractor required from 85hp.

Standard Features

Steep pitched tall auger for a live action fast mix
3 feedout legs on the auger for faster even feedout
Floor vein to reduce power requirement and reduce tub wear
Flat sided tub design to retard material for faster chopping
Auger Magnet
Hydraulic front side door
Adjustable corner knives
Straw ring
Direct hydraulics
3 x load cells
Hydraulic braked axle
LED Road Lights
Standard tyres – 385/55 R19.5

Powermix Pro Side Door 11m³

The single auger mixer has a capacity of 11m³ which would hold approximately 5,000Kg depending on the dry matter of the feed. Its compact single axle design allows the machine to be navigated around and into tight buildings.

The simple door design minimizes the use of moving parts and is ideal for on-floor feeding or into shallow troughs.

An adjustable feed out tray is fitted as standard, enabling feed to be delivered up to 2’4”. An additional door is available for the rear left side to enable feeding on both sides. Tractor required from 90hp.

Standard Features

Steep pitched tall auger for a live action fast mix
3 feedout legs on the auger for faster even feedout
Floor vein to reduce power requirement and reduce tub wear
Flat sided tub design to retard material for faster chopping
Auger Magnet
Hydraulic front side door
Adjustable corner knives
Straw ring
Direct hydraulics
3 x load cells
Hydraulic braked axle
LED Road Lights
Standard tyres – 385/55 R19.5

Powermix Pro Side Door 13m³

The single auger mixer has a capacity of 13m³ which would hold approximately 6,000Kg depending on the dry matter of the feed. Its compact single axle design allows the machine to be navigated around tight buildings.

The simple door design minimizes the use of moving parts and is ideal for on-floor feeding or into shallow troughs. An adjustable feed out tray is fitted as standard, enabling feed to be delivered up to 2’4”.

An additional door is available for the rear left side to enable feeding on both sides. Tractor required from 100hp.

Standard Features

Steep pitched tall auger for a live action fast mix
3 feedout legs on the auger for faster even feedout
Floor vein to reduce power requirement and reduce tub wear
Flat sided tub design to retard material for faster chopping
Auger Magnet
Hydraulic front side door
Adjustable corner knives
Straw ring
Direct hydraulics
3 x load cells
Hydraulic braked axle
LED Road Lights
Standard tyres – 385/55 R19.5

Powermix Pro Side Door 15m³

The single auger mixer has a capacity of 15m³ which would hold approximately 7,000Kg depending on the dry matter of the feed. Its compact single axle design allows the machine to be navigated around tight buildings.

The simple door design minimizes the use of moving parts and is ideal for on-floor feeding or into shallow troughs.

An adjustable feed out tray is fitted as standard, enabling feed to be delivered up to 2’4”. An additional door is available for the rear left side to enable feeding on both sides. Tractor required from 110hp.

Standard Features

Steep pitched tall auger for a live action fast mix
3 feedout legs on the auger for faster even feedout
Floor vein to reduce power requirement and reduce tub wear
Flat sided tub design to retard material for faster chopping
Auger Magnet
Hydraulic front side door
Adjustable corner knives
Straw ring
Direct hydraulics
3 x load cells
Hydraulic braked axle
LED Road Lights
Standard tyres – 385/55 R19.5

STANDARD FEATURES - Powermix Pro Side Door

1
2
3
4
5
6
7
8
9
10
11
12
13
14
1. Steep pitched tall auger for a live action fast mix

To aid with positive mix keeping the material live
2. Feedout legs and floor veins to improve feedout speed

The 3 feedout legs aid fast even feedout. The floor vein cleans material from the feedout legs and reduces power requirement / tub wear
3. Adjustable corner knives

To aid chopping and decrease processing time

4. Hydraulic front door

To allow different discharge rates
5. Straw ring

To prevent dry material such as straw overflowing whilst mixing
6. Load cells

3 x load cells to calculate weight
7. Hydraulic braked axle

Braking via tractor trailer braking system
8. LED road lights

LED road lights for superior lighting.
9. Gearbox oil level / expansion tank

External oil level for the gearbox.
10. Viewing Ladder

The rear ladder allows the operator to asses the level of mix and to add small quantities of supplements.
11. Auger Gearbox

High capacity gearbox requiring minimal routine maintenance

12. Shearbolt protection

Shearbolt protection on the pto shaft
13. 15mm Thick Floor & 16mm Lower Sides

To provide longevity to the tub
14. Auger Magnet

To prevent feeding out metal objects that could be present within the feed.
1Steep pitched tall auger for a live action fast mix 2Feedout legs and floor veins to improve feedout speed 3Adjustable corner knives 4Hydraulic front door 5Straw ring 6Load cells 7Hydraulic braked axle 8LED road lights 9Gearbox oil level / expansion tank 10Viewing Ladder 11Auger Gearbox 12Shearbolt protection 1315mm Thick Floor & 16mm Lower Sides 14Auger Magnet

Powermix Pro Side Door Options

2 speed gearbox Hi & Low speed for auger Read more Left rear corner door To allow feeding from both sides Read more Tungsten blades Maintains sharp blade for extended period Read more DG-600 Programmable Scale The DG-600 allows rations to be programmed & recorded into the scale. Read more DG-Remote Zero (DG400/600) Remote control of the the scale from the tractor or handler Read more DG-Dina Tel Wireless Remote Display (DG600only) Wireless display that can be used in tractor cab or handler Read more Wired Remote scale head (DG400/600) Additional display for the tub Read more GPRS- Data Transfer kit (DG600) Allows transfer of data automatically without the use of a USB data key Read more Bluetooth Phone scale modem (DG600) Allows the scale display on a Bluetooth device Read more External scale power pack External power source when loading mixer without power ie no tractor coupled Read more Wide Angle PTO Allows the pto to be used whilst tractor is turning on a gentle radius. Read more 425/40 R17 Tyre Single auger upto 11m³ Read more High Clearance Option 385/65 R22.5 tyres with with tub riser kit Read more

Powermix Pro Side Door 3D View

    Need Some Advice? We are happy to help

    About us | Dealer Locator

    If you have questions or require advice about the Powermix Pro Side Door, or any of our other products, then contact us today.

    +44 (0) 1359 250415 Send enquiry

    TECHNICAL DATA

    Stndard Features9m³11m³13m³15m³
    Capacity / Level4500kg*5500kg*6500kg*7500kg*
    Volume / Level 9m³11m³13m³15m³
    Tyre Size385/55R19.5385/55R19.5385/55R19.5385/55R19.5
    Axle TypeSingleSingleSingleSingle
    PTO Speed540rpm540rpm540rpm540rpm
    HP Required8590100120
    Unladen Weight3780kg4040kg4205kg4365kg
    Door ConfigurationSingle RH Front CornerSingle RH Front CornerSingle RH Front CornerSingle RH Front Corner
    Door OperationHydraulicHydraulicHydraulicHydraulic
    Hydraulic BrakesSTDSTDSTDSTD
    LED LightsSTDSTDSTDSTD
    Adjustable Corner KnivesSTDSTDSTDSTD
    Rubber Straw Retaining RingSTDSTDSTDSTD
    Hydraulic ControlDirect via TractorDirect via TractorDirect via TractorDirect via Tractor
    Number of Load Cells3333
    Number of Augers1111
    Number of Blades771011
    Auger MagnetSTDSTDSTDSTD
    Options
    LH Rear Corner DoorOPTOPTOPTOPT
    Two Speed GearboxOPTOPTOPTOPT
    Manual Hyd Valve ControlOPTOPTOPTOPT
    DG600 Prog. Scale SystemOPTOPTOPTOPT
    DG Remote ZeroOPTOPTOPTOPT
    DG GPRS Data Transfer KitOPTOPTOPTOPT
    Remote Scale HeadOPTOPTOPTOPT
    Battery Pack for ScaleOPTOPTOPTOPT
    425/40 R17 TyreOPTOPTN/AN/A
    Tub Riser (Inc 385/65 R22.5 Super Single Tyre)OPTOPTOPTOPT
    Wide Angle PTOOPTOPTOPTOPT
    Tungsten BladesOPTOPTOPTOPT
    * Depending Upon Feed DM%

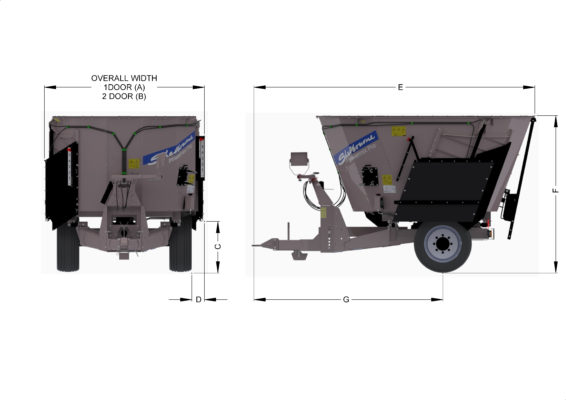

    Enlarge
    ModelABCDEFGH
    9m³2458mm / 8'2600mm / 8'6"740mm / 2'5"330mm / 1'1"4605mm / 15'4"2515mm / 8'3"3105mm / 10'4"2255mm / 7'5"
    11m³2458mm / 8'2600mm / 8'6"740mm / 2'5"330mm / 1'1"4715mm / 15'8"2815mm / 9'3"3105mm / 10'4"2255mm / 7'5"
    13m³2458mm / 8'2600mm / 8'6"740mm / 2'5"330mm / 1'1"4825mm / 16'1"3115mm / 10'3"3105mm / 10'4"2255mm / 7'5"
    15m³2458mm / 8'2600mm / 8'6"740mm / 2'5"330mm / 1'1"4935mm / 16'5"3315mm / 10'11"3105mm / 10'4"2255mm / 7'5"

    Support & Guides

    Looking for something specific?

    Search our support area for individual model set-up guides and more...

    Frequently Asked Questions

    Yes the Powermix Mixer Feeder has a sealed tub that allows water to be added to dry ingredients and high levels of liquid feeds to added to mixes.

    Yes the powermix Feeder Wagon will take whole big bales of hay, straw and silage and chop them down to produce a mix.

    The Powermix Popular range is probably best suited for floor feeding or into low feed troughs. if high feeding is required the Powermix Express with a elevating conveyor or a Powermix Plus would be recommended as a height of 5’5″ can be reached.

    Yes, there are a number of different scale options that allow you to store rations as well as download data between the office PC and mixer scale

    A 9m3 powermix Mixer Wagon can be driven with a 70 hp tractor.

    Yes, the low loader Powermix Feeder Wagon has a loading height starting at 2.1m

    Yes, The powermix Mixer Feeder can be supplied with an independent power pack to run the diet computer and can be hitched up and started once your ingredients have been loaded.
