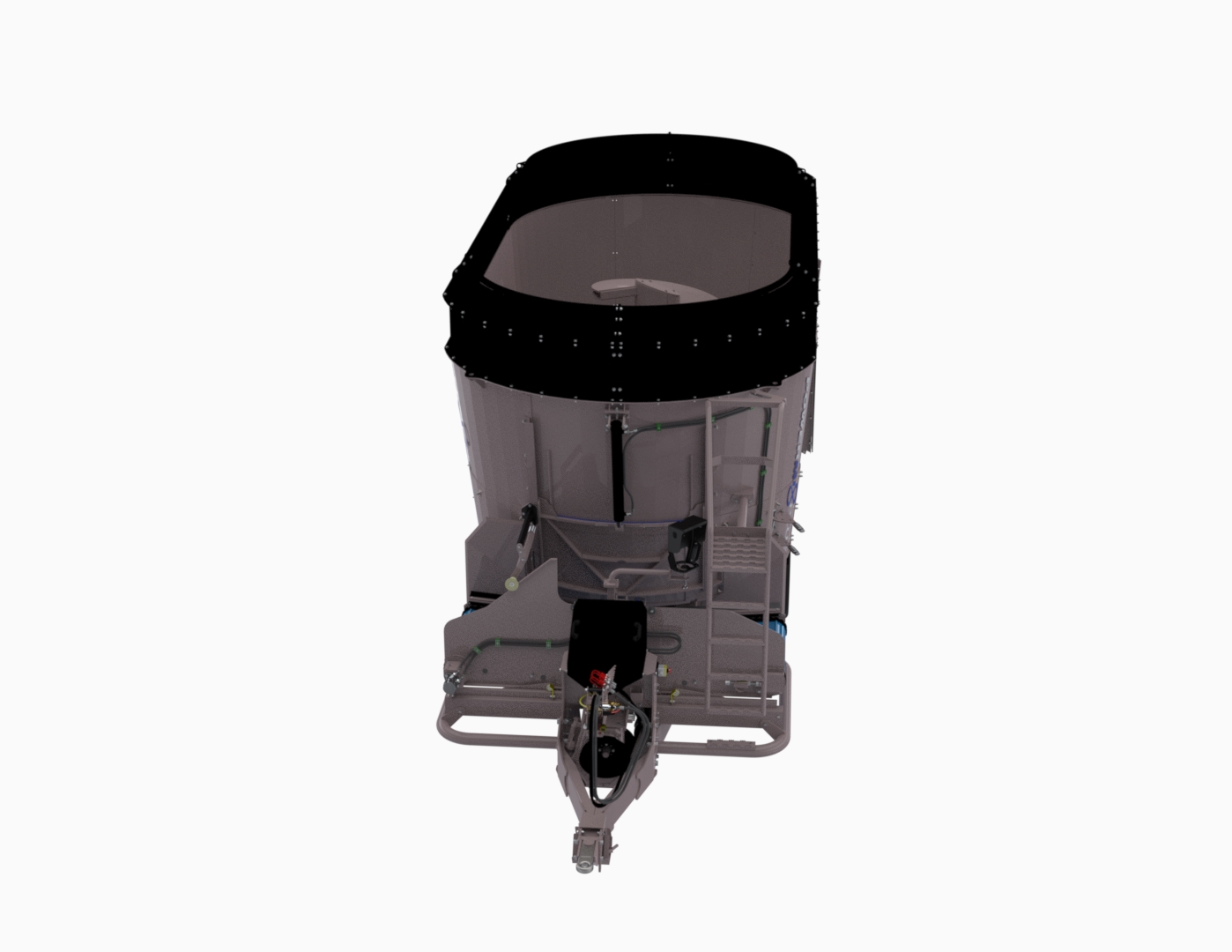

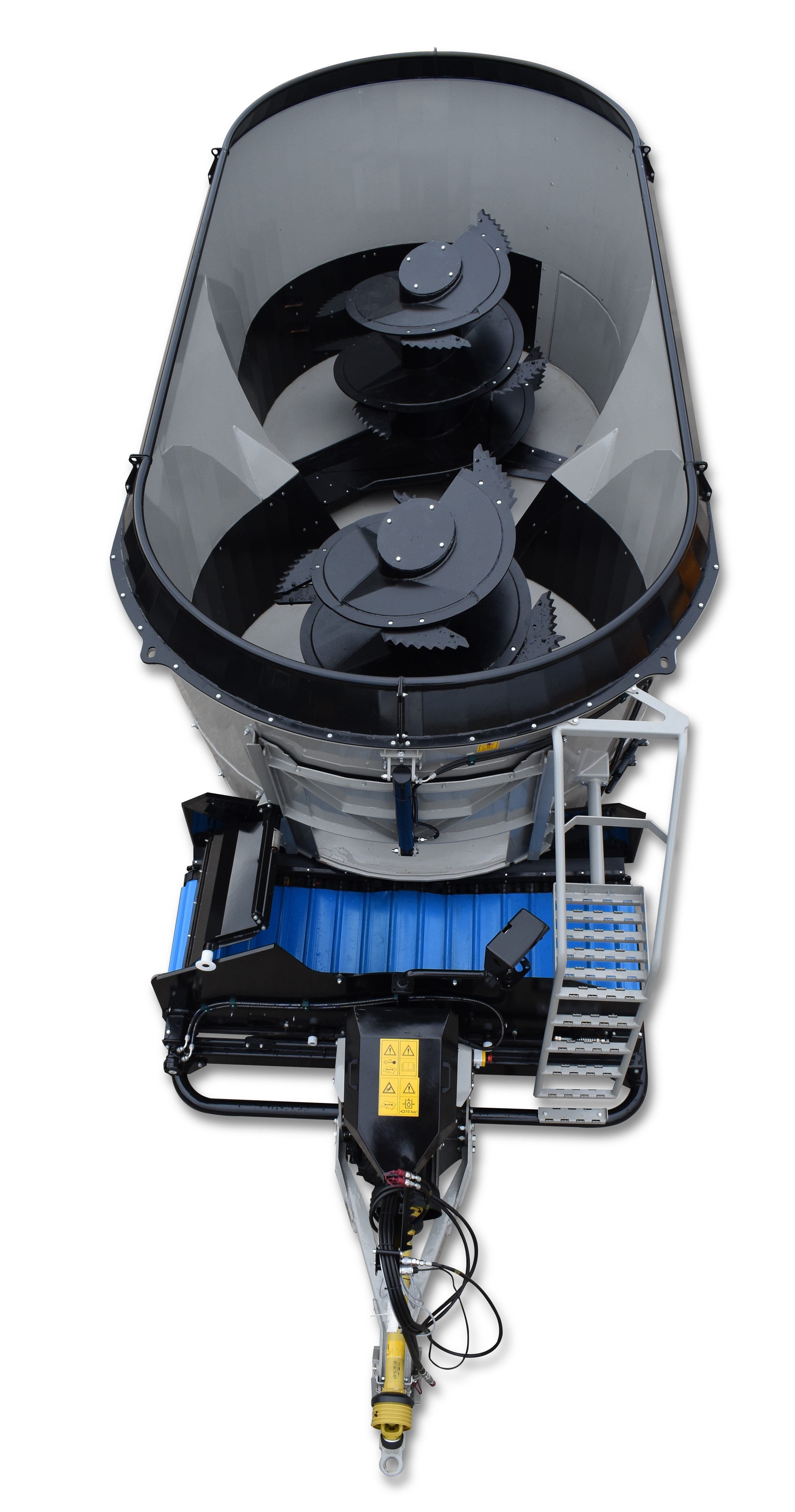

The Powermix Plus Wide Body is the flagship of the Shelbourne Reynolds range, designed for the largest herds and most demanding users feeding 100t or more a day.
The twin auger & tandem sprung axle machine with a short chassis for maneuverability and a curved tub shape for more efficient bale processing and faster mixing times, the Powermix Plus Wide Body is available in four models from 22m³ – 30m³
The 22m³ Powermix Plus is a compact twin auger diet feeder available in a sprung tandem axle configuration, it has a capacity of approximately 11,000kg depending upon the dry matter of the feed. Its overall size remains compact with its height of 2.9m and max width of 2.8m at the top of the tub. The tractor requirement would be from 140HP.
Dispensing is taken care of by a new webbing conveyor system incorporating increased roller diameters and uprated food-grade belting. The new conveyor is 800mm wide and, coupled with a larger door, has been designed to allow significantly faster feedout rates, particularly when feeding fresh grass in zero grazing systems.
| Stepped design auger with 15mm stainless steel edging for improved mixing & durability |
| Replaceable lower tub liner sections |
| Replaceable auger wear plates |

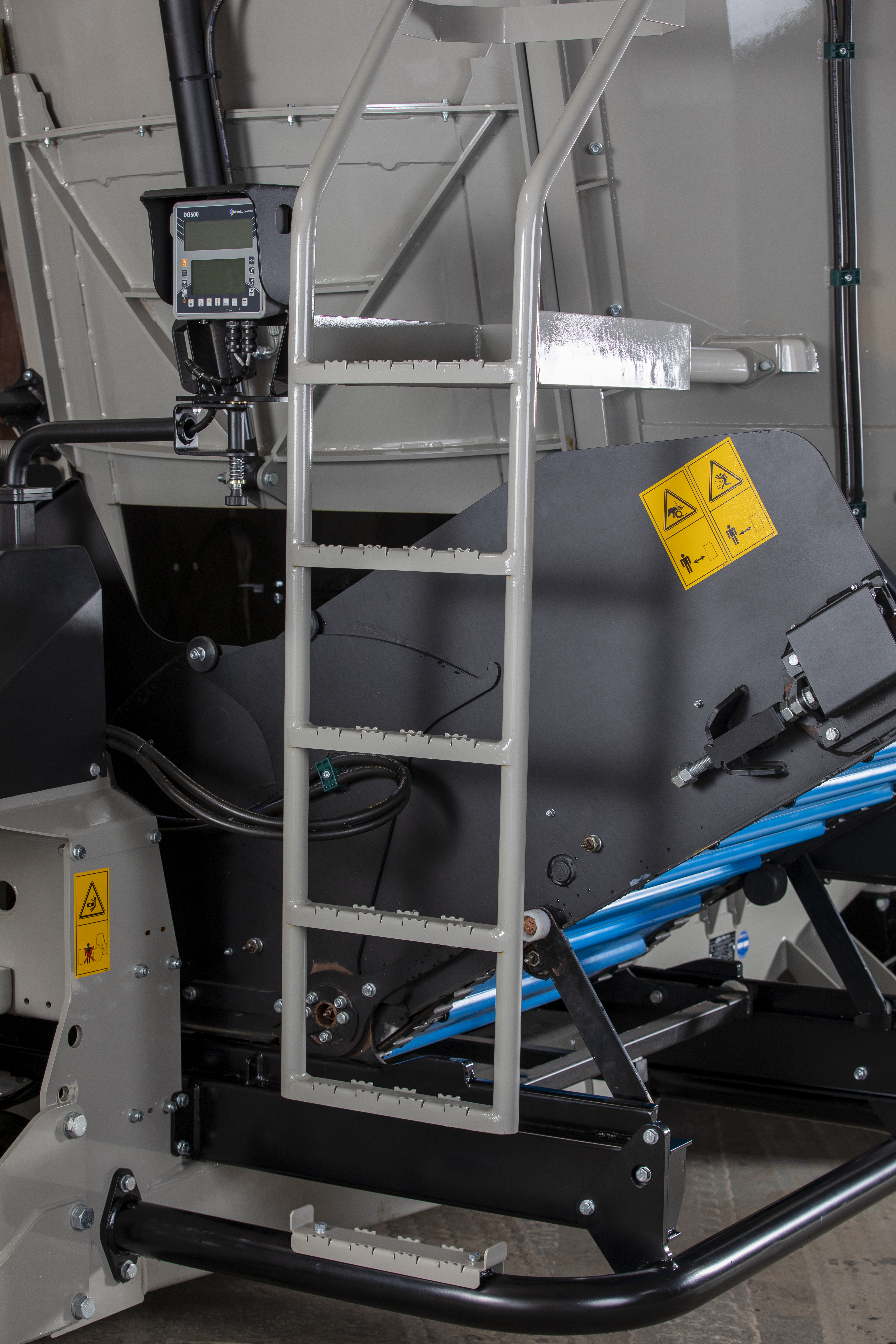

| Front mounted ladder and viewing platform |
| Rear LED road lights |
| Front mounted scale can be viewed from both sides |
| Steel straw ring |
| Smooth tub shape for faster bale processing and mixing |
| 6 x load cells |
| Steering Rear Axle |
| 24 Tonne parabolic sprung axles |
| Hydraulic brakes |
| Direct Coupled hydraulics |
| 2 speed gearbox with manual control |

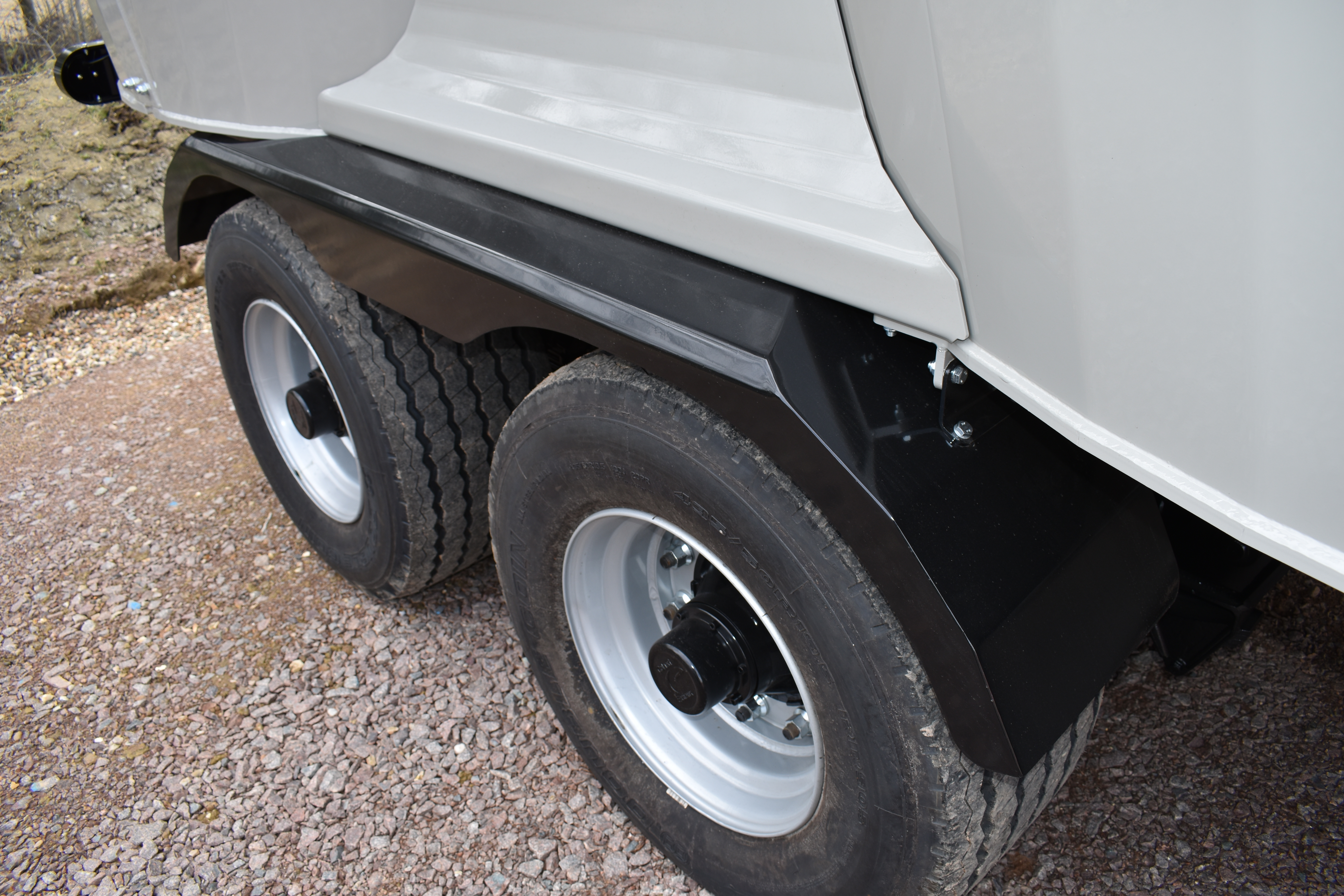

| Steel mudguards |
| Standard tyres: 435/50 R19.5 |

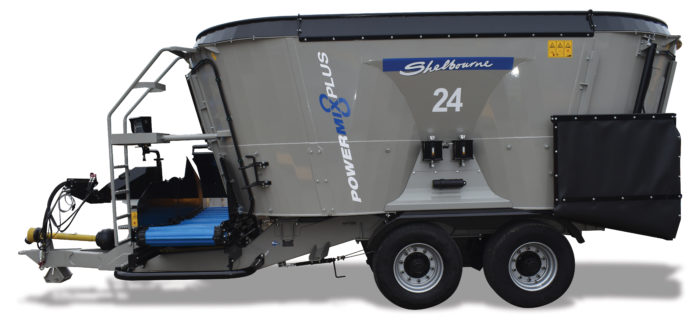

The 24m³ Powermix Plus is a compact twin auger diet feeder available in a sprung tandem axle configuration, it has a capacity of approximately 12,000kg depending upon the dry matter of the feed. Its overall size remains compact with its height of 3m and max width of 2.8m at the top of the tub. The tractor requirement would be from 140HP.
Dispensing is taken care of by a new webbing conveyor system incorporating increased roller diameters and uprated food-grade belting. The new conveyor is 800mm wide and, coupled with a larger door, has been designed to allow significantly faster feedout rates, particularly when feeding fresh grass in zero grazing systems.
| Stepped design auger with 15mm stainless steel edging for improved mixing & durability |
| Replaceable lower tub liner sections |
| Replaceable auger wear plates |
| Front mounted ladder and viewing platform |
| Rear LED road lights |
| Front mounted scale can be viewed from both sides |
| Steel straw ring |
| Smooth tub shape for faster bale processing and mixing |
| 6 x load cells |
| Steering Rear Axle |
| 24 Tonne parabolic sprung axles |
| Hydraulic brakes |
| Direct Coupled hydraulics |
| 2 speed gearbox with manual control |
| Steel mudguards |
| Standard tyres: 435/50 R19.5 |
The 28m³ Powermix Plus is a compact twin auger diet feeder available in a sprung tandem axle configuration, it has a capacity of approximately 14,000kg depending upon the dry matter of the feed. Its overall size remains compact with its height of 3.3m and max width of 2.8m at the top of the tub. The tractor requirement would be from 160HP.
Dispensing is taken care of by a new webbing conveyor system incorporating increased roller diameters and uprated food-grade belting. The new conveyor is 800mm wide and, coupled with a larger door, has been designed to allow significantly faster feedout rates, particularly when feeding fresh grass in zero grazing systems.
| Stepped design auger with 15mm stainless steel edging for improved mixing & durability |
| Replaceable lower tub liner sections |
| Replaceable auger wear plates |
| Front mounted ladder and viewing platform |
| Rear LED road lights |
| Front mounted scale can be viewed from both sides |
| Steel straw ring |
| Smooth tub shape for faster bale processing and mixing |
| 6 x load cells |
| Steering Rear Axle |
| 24 Tonne parabolic sprung axles |
| Hydraulic brakes |
| Direct Coupled hydraulics |
| 2 speed gearbox with manual control |
| Steel mudguards |
| Standard tyres: 435/50 R19.5 |
The 30m³ Powermix Plus is a compact twin auger diet feeder available in a sprung tandem axle configuration, it has a capacity of approximately 15,000kg depending upon the dry matter of the feed. Its overall size remains compact with its height of 3.5m and max width of 2.8m at the top of the tub. The tractor requirement would be from 160HP.
Dispensing is taken care of by a new webbing conveyor system incorporating increased roller diameters and uprated food-grade belting. The new conveyor is 800mm wide and, coupled with a larger door, has been designed to allow significantly faster feedout rates, particularly when feeding fresh grass in zero grazing systems.
| Stepped design auger with 15mm stainless steel edging for improved mixing & durability |
| Replaceable lower tub liner sections |
| Replaceable auger wear plates |
| Front mounted ladder and viewing platform |
| Rear LED road lights |
| Front mounted scale can be viewed from both sides |
| Steel straw ring |
| Smooth tub shape for faster bale processing and mixing |
| 6 x load cells |
| Steering Rear Axle |
| 24 Tonne parabolic sprung axles |
| Hydraulic brakes |
| Direct Coupled hydraulics |
| 2 speed gearbox with manual control |
| Steel mudguards |
| Standard tyres: 435/50 R19.5 |
The new shape promotes the live mix of the ration and speeds up processing time.

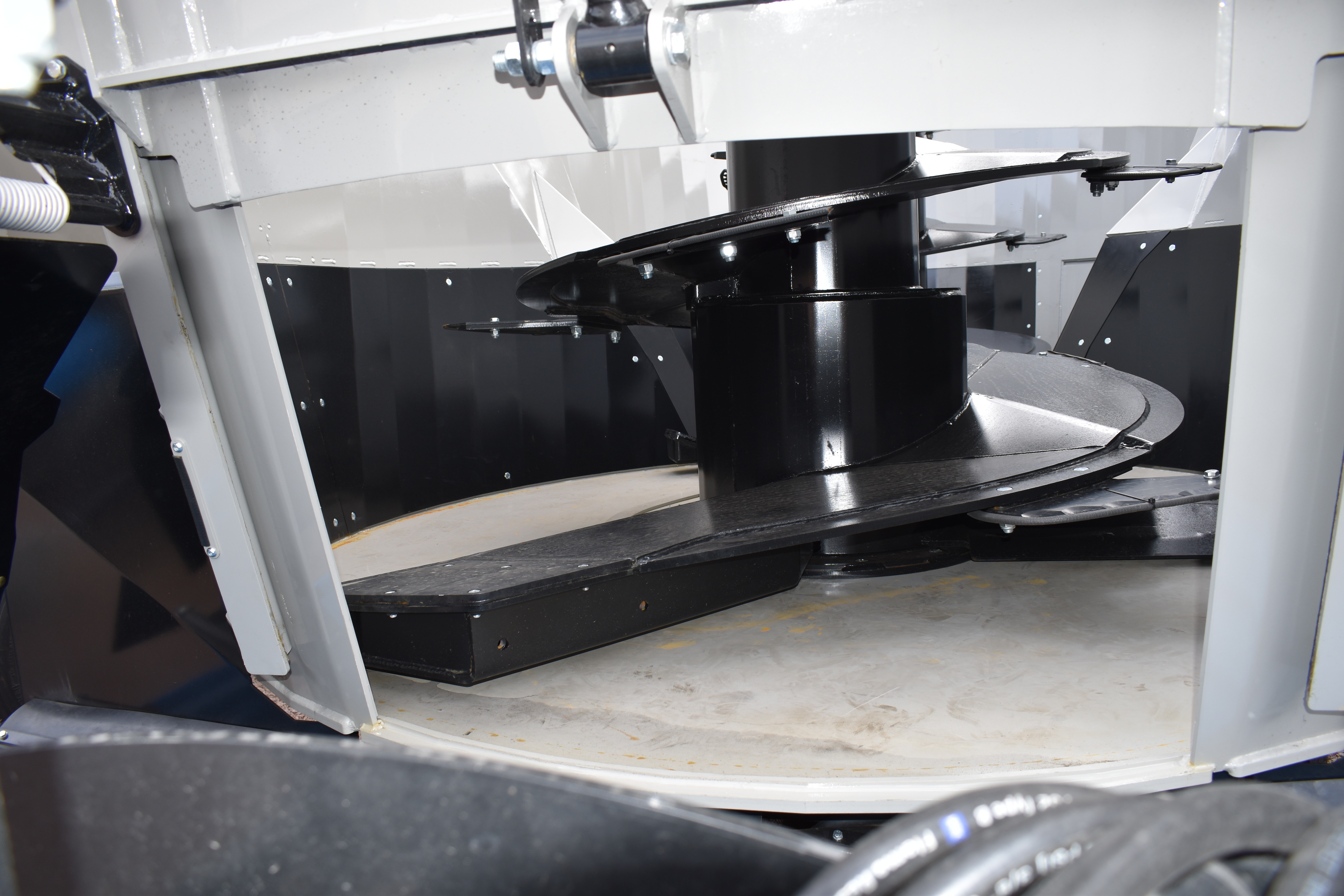

Bolt on plates to aid the replacement of wearing parts.
S500 Grade bolt in replaceable tub liners.
For increased feed out rates.
the automatic deflector positions its self as the conveyor moves to the left or right to prevent spillage.
The conveyor position and feed rate can easily be adjusted from the cab whilst feeding out with either control system.

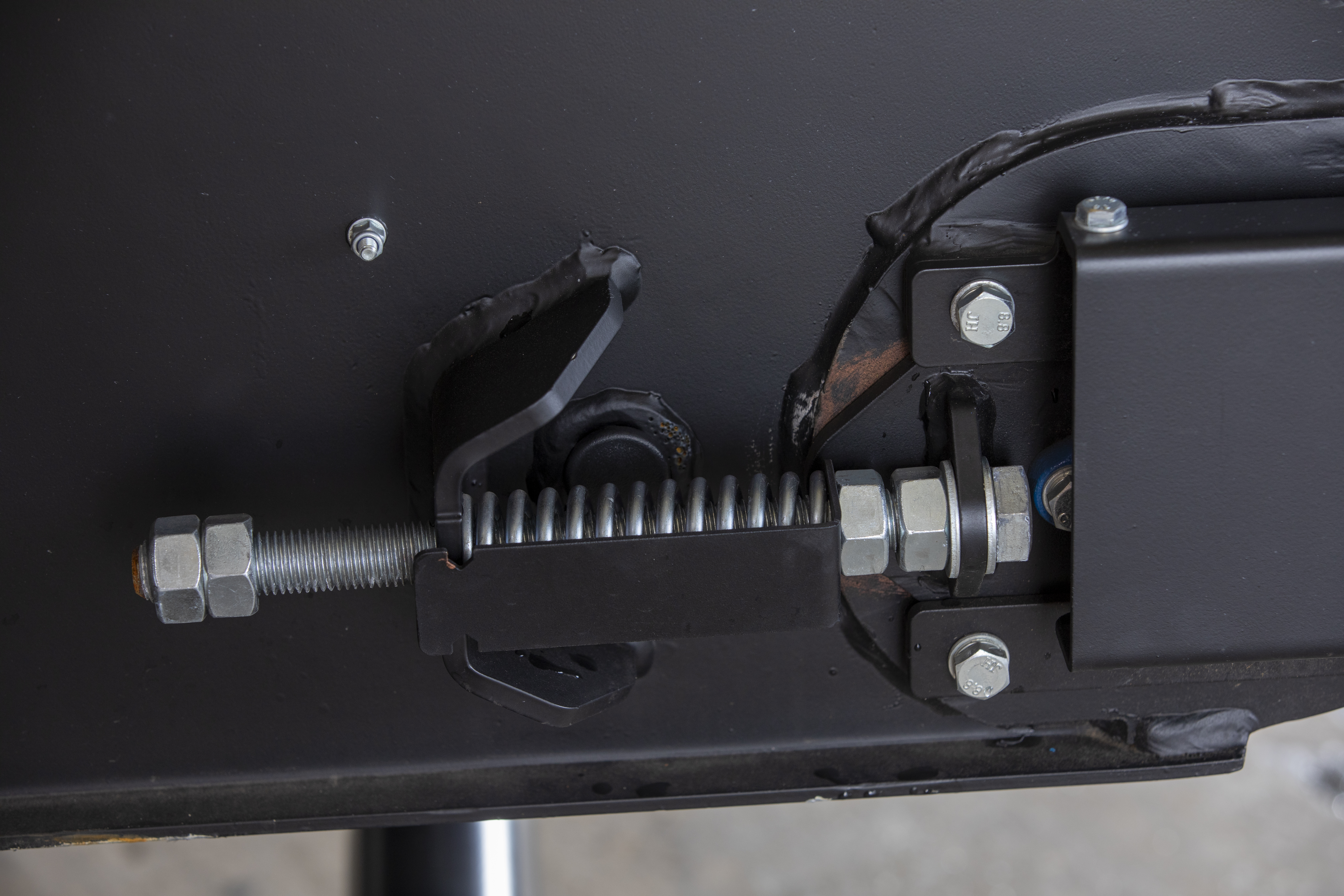

To aid belt tension and reduce belt wear.
Good visibility of the front door to aid operation & feed out.
High Capacity 2 speed gearbox rated at 245hp.

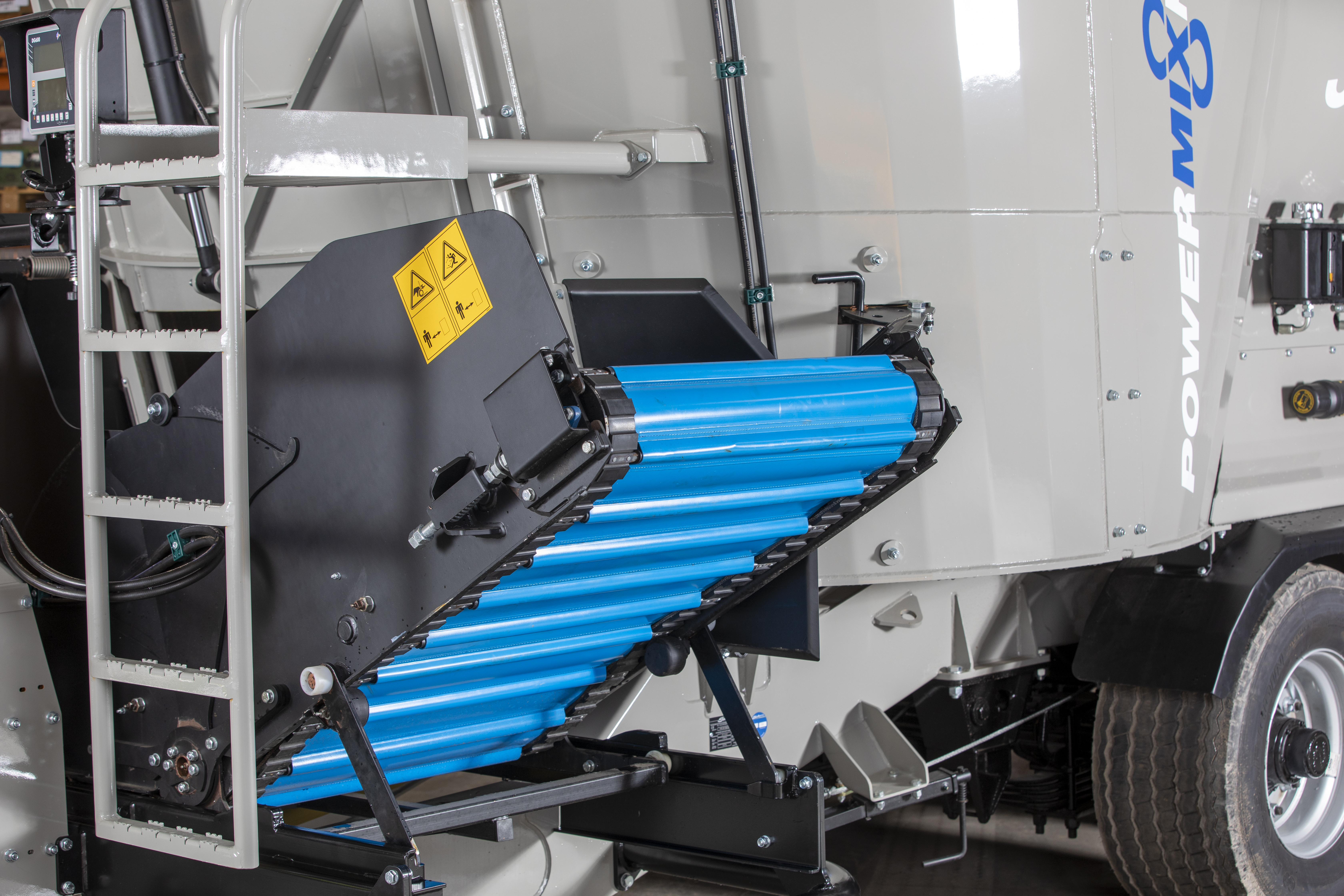

850mm wide made with food grade PU which is resistant to acid fat/oil & UV light.
Hardox floor made with 450 grade.

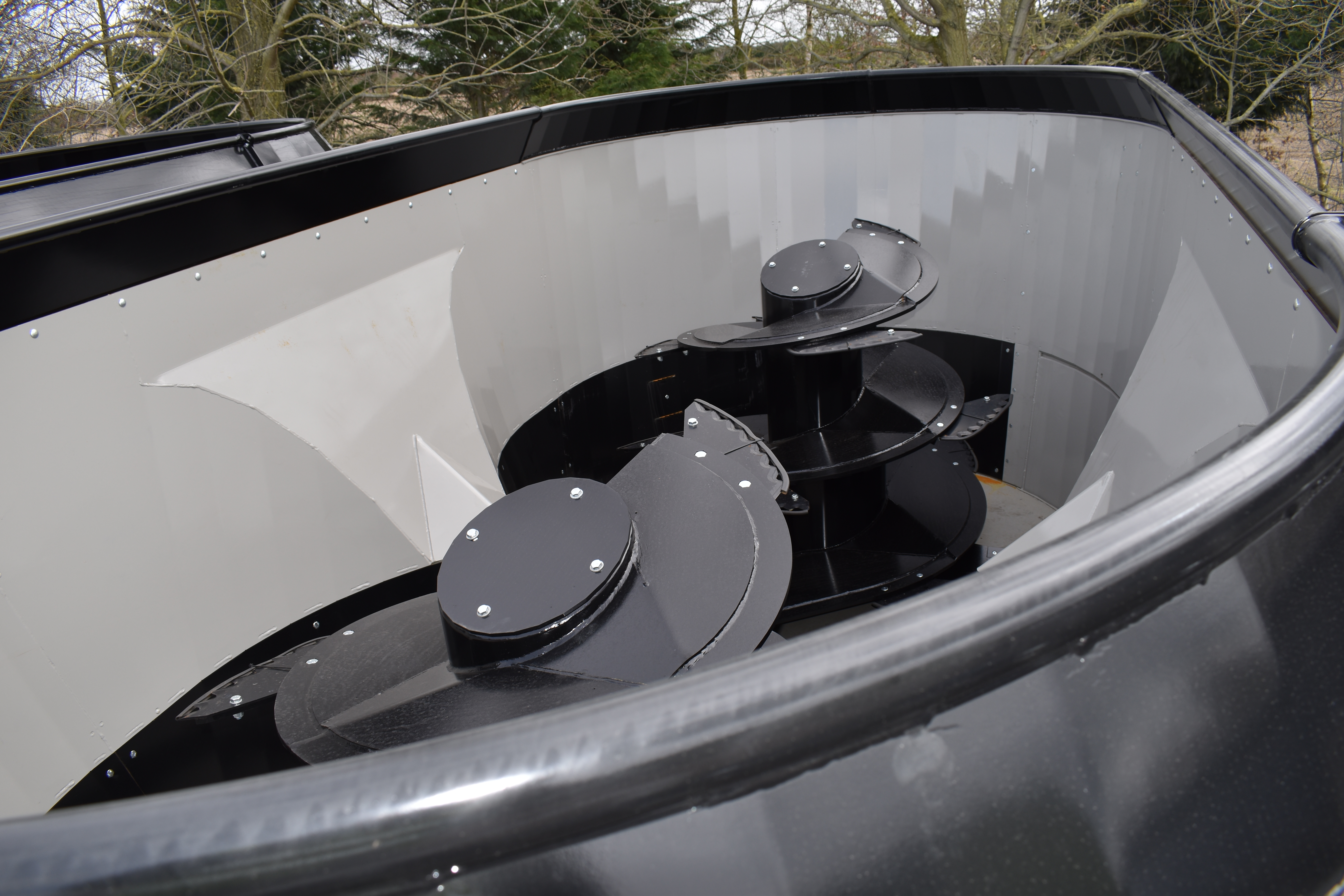

15mm S500 grade auger flights with stainless steel edging.
To prevent dry material such as straw overflowing whilst mixing.
To prevent feeding out metal objects that could be present within the feed.
Wider belt to increase feed out rate
435/50 R19.5
Heavy duty sprung axle.
To Allow feeding / discharge at the rear of the tub on the LH side.
To view inside the mixer or add small quantities of trace elements

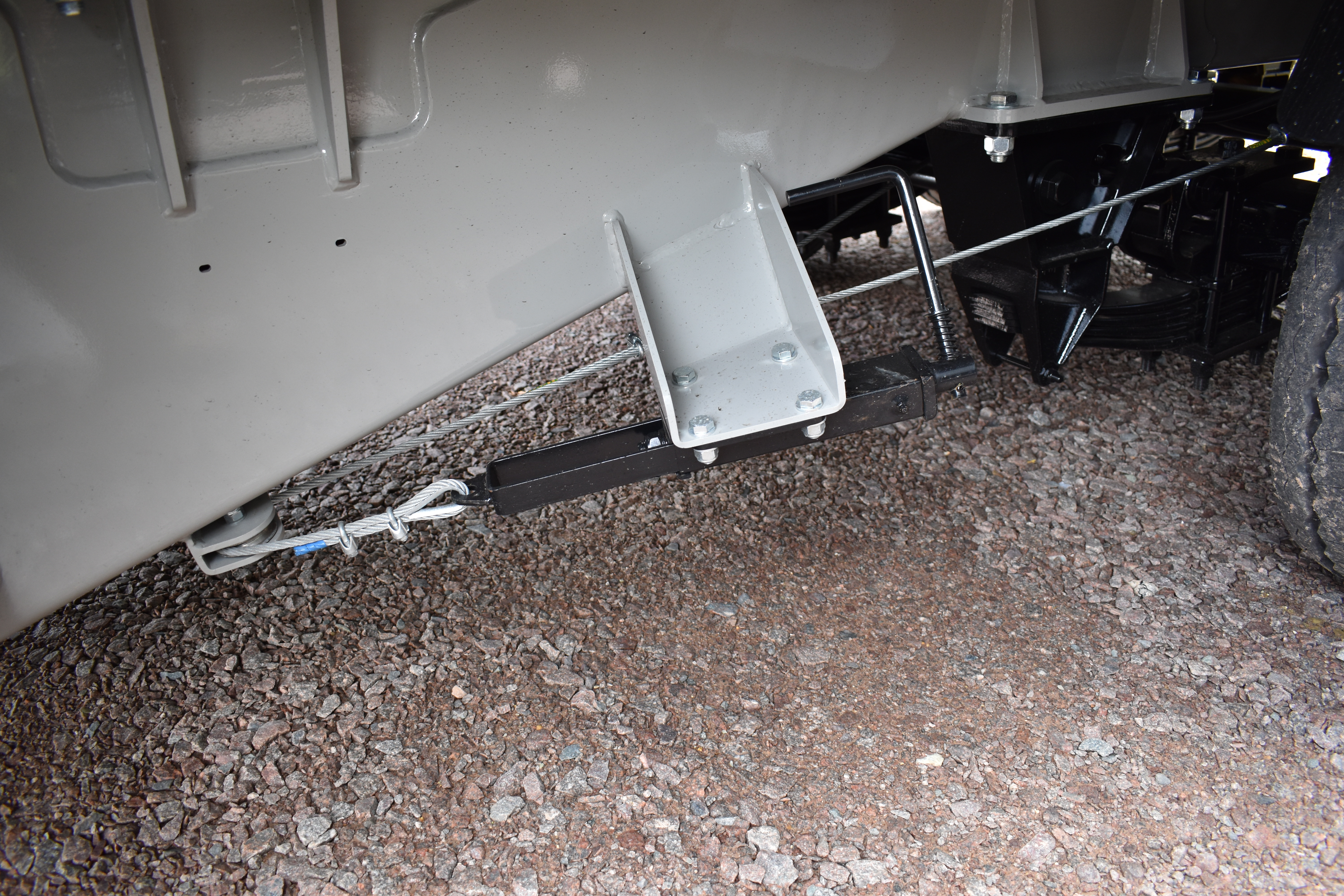

Manual parking brake for use when mixer is disconnected from the tractor.
W2600 PTO Shaft
To aid chopping and decrease processing time.

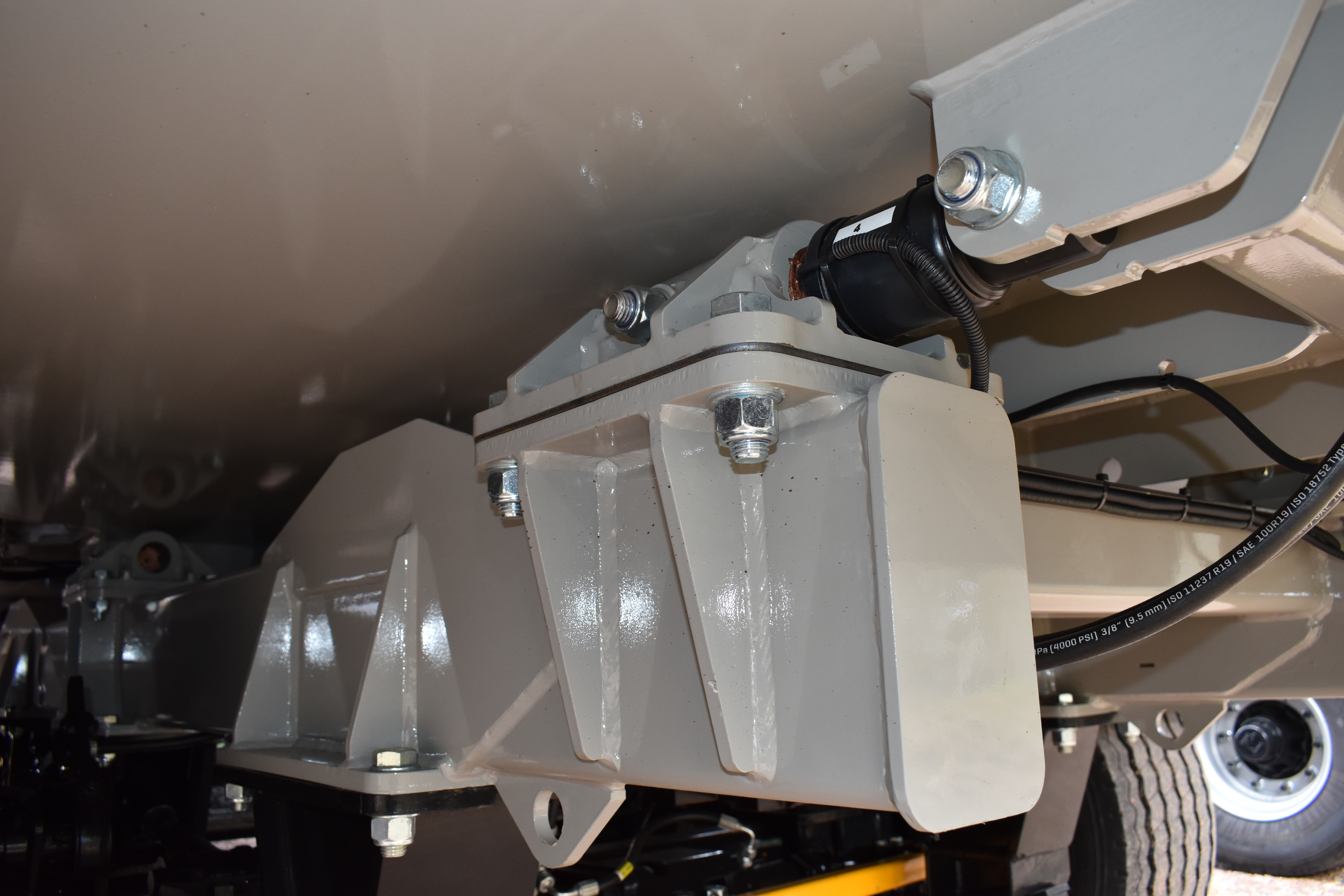

6 x Load cells for accuracy.
Electric Hydraulic Control
With Vari-Speed Conveyor
Read more
Wireless Electric Hydraulic Control
With Vari-Speed Conveyor and 2 speed control
Read more
Electric 2 speed control
To change gearbox speed (Hi & Low) For direct coupled hydraulics
Read more
Corner Rear Hydraulic door (LH)
To Allow feeding / discharge at the rear of the tub
Read more
Tungsten blades
To help maintain a sharp edge
Read more
DG-600 Programmable Scale
The DG-600 allows rations to be programmed & recorded into the scale.
Read more
DG-Remote Zero (DG400/600)
Remote control for scale via the tractor or handler
Read more
DG-Dina Tel Wireless Remote Display (DG600only)
Wireless display that can be mounted in the tractor or handler
Read more
Wired Remote scale head (DG400/600)
Additional display
Read more
GPRS- Data Transfer kit (DG600)
Allows transfer of data automatically without the use of a USB data key
Read more
Bluetooth Phone scale modem (DG600)
Allows the scale display on a Bluetooth device
Read more
External scale Power Pack
External power source when loading mixer without power ie no tractor coupled
Read more
Air Brakes
The air-brake system improves the braking efficiency.
Wide Angle PTO
Allows the pto to be used whilst tractor is turning on a gentle radius.
Read more
If you have questions or require advice about the Powermix Plus Wide Body, or any of our other products, then contact us today.
| Stndard Features | 22m³ | 24m³ | 28m³ | 30m³ |
|---|---|---|---|---|
| Capacity / Level | 11000kg* | 12000kg* | 14000kg* | 15000kg* |
| Volume / Level | 22m³ | 24m³ | 28m³ | 30m³ |
| Tyre Size | 435/50R19.5 | 435/50R19.5 | 435/50R19.5 | 435/50R19.5 |
| Axle Type | Tandem | Tandem | Tandem | Tandem |
| Rear Steering | STD | STD | STD | STD |
| PTO Speed | 540rpm | 540rpm | 540rpm | 540rpm |
| HP Required | 140 | 140 | 160 | 160 |
| Unladen Weight | 10105kg | 10290kg | 1148kg | 11200kg |
| Door Configuration | Front Centre | Front Centre | Front Centre | Fron Centre |
| Door Operation | Hydraulic | Hydraulic | Hydraulic | Hydraulic |
| Hydraulic Brakes | STD | STD | STD | STD |
| LED Lights | STD | STD | STD | STD |
| Adjustable Corner Knives | STD | STD | STD | STD |
| Steel Straw Ring | STD | STD | STD | STD |
| Hydraulic Control | Direct via Tractor | Direct via Tractor | Direct via Tractor | Direct via Tractor |
| Number of Load Cells | 6 | 6 | 6 | 6 |
| Number of Augers | 2 | 2 | 2 | 2 |
| Number of Blades | 14 | 14 | 18 | 18 |
| Two Speed Gearbox | STD | STD | STD | STD |
| Auger Magnet | STD | STD | STD | STD |
| Elevating Conveyor | STD | STD | STD | STD |
| Fixed Front Conveyor | N/A | N/A | N/A | N/A |
| Options | ||||
| Electric Control with Vari Speed Conveyor / 2 speed change | OPT | OPT | OPT | OPT |
| Wireless Electric Control with Vari Speed Conveyor / 2 Speed Change | OPT | OPT | OPT | OPT |
| Manual Hyd Valve Control | OPT | OPT | OPT | OPT |
| DG600 Prog. Scale System | OPT | OPT | OPT | OPT |
| DG Remote Zero | OPT | OPT | OPT | OPT |
| DG GPRS Data Transfer Kit | OPT | OPT | OPT | OPT |
| Remote Scale Head | OPT | OPT | OPT | OPT |
| Battery Pack for Scale | OPT | OPT | OPT | OPT |
| Wide Angle PTO | OPT | OPT | OPT | OPT |
| Tungsten Blades | OPT | OPT | OPT | OPT |
| Rear Centre Door | N/A | N/A | N/A | N/A |
| Corner Rear Door (LH) | OPT | OPT | OPT | OPT |
| Air Brakes | OPT | OPT | OPT | OPT |
|
* Depending Upon Feed DM%
|
||||

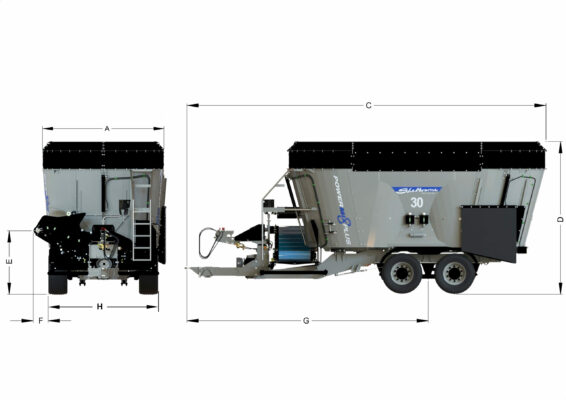

| Model | A | C | D | E | F | G | H |
|---|---|---|---|---|---|---|---|
| 22m³ 435/50 R19.5 | 2965mm / 9'9" | 8259mm / 27' | 2900mm / 9'6" | 1555mm / 5'1" | 336mm / 1'1" | 5530mm / 18'2" | 2550 mm / 8'4" |
| 24m³ 435/50 R19.5 | 2965mm / 9'9" | 8259mm / 27' | 3085mm / 10'1" | 1555mm / 5'1" | 336mm / 1'1" | 5530mm / 18'2" | 2550 mm / 8'4" |
| 28m³ 435/50 R19.5 | 2965mm / 9'9" | 8259mm / 27' | 3310mm / 10'10" | 1555mm / 5'1" | 336mm / 1'1" | 5530mm / 18'2" | 2550 mm / 8'4" |
| 30m³ 435/50 R19.5 | 2965mm / 9'9" | 8259mm / 27' | 3495mm / 11'5" | 1555mm / 5'1" | 336mm / 1'1" | 5530mm / 18'2" | 2550 mm / 8'4" |
Looking for something specific?
Search our support area for individual model set-up guides and more...
Yes the Powermix Mixer Feeder has a sealed tub that allows water to be added to dry ingredients and high levels of liquid feeds to added to mixes.
Yes the powermix Feeder Wagon will take whole big bales of hay, straw and silage and chop them down to produce a mix.
Yes the feed out options on a Powermix Epress & Plus Feeder Wagon gives several options for feeding over high barriers. up to 5’5″
Yes, the machine should be operated in high gear with a 1000rpm tractor pto input and the three legs on the bottom of each auger will easily mix the smallest of rations
Yes, there are a number of different scale options that allow you to store rations as well as download data between the office PC and mixer scale
Yes, The powermix Mixer Feeder can be supplied with an independent power pack to run the diet computer and can be hitched up and started once your ingredients have been loaded.
