The side door Powermix Plus range offers an entry level twin auger feeder with the simplicity of feeding onto the floor or into low level troughs.
Models are available from 16 to 22 cubic metres with either single axle (upto 20m³) or tandem axles (16-22m³). All models feature a right hand front hydraulic door which is operated via the tractor spoil valves.
The 16m³ Powermix Plus is a compact twin auger diet feeder available in both single and tandem sprung axle configurations, it has a capacity of approximately 8000kg depending upon the dry matter of the feed. It is a short coupled machine able to navigate around tight buildings and requires a 115HP tractor.
The right front hydraulic door is operated via the tractor spoil valve. Single axle and tandem sprung axle versions are available. An additional left hand & centre mounted rear door is optional.
| Heavy duty stepped auger with stainless steel edging |
| 12.5mm thick S500 lower tub wall |
| 15mm thick S500 auger |
| Removable auger wear plates |
| Front mounted ladder and viewing platform |
| Rear LED road lights |
| Front mounted scale can be viewed from both sides |
| Steel straw ring |
| Smooth tub shape for faster bale processing and mixing |
| 3 x 90mm load cells |
| Hydraulic brakes |
| Direct Coupled hydraulics |
| 2 speed gearbox |
| Standard Single axle tyres: 435/50 R19.5 |
| Standard Tandem axle tyres: 385/55 R22.5 |
The 18m³ Powermix Plus is a compact twin auger diet feeder available in both single and sprung tandem axle configurations, it has a capacity of approximately 9000kg depending upon the dry matter of the feed. It is a short coupled single axle machine able to navigate around tight buildings and requires a 120HP tractor.
The right front hydraulic door is operated via the tractor spoil valve. Single axle and tandem sprung axle versions are available. An additional left hand & centre mounted rear door is optional.
| Heavy duty stepped auger with stainless steel edging |
| 12.5mm thick S500 lower tub wall |
| 15mm thick S500 auger |
| Removable auger wear plates |
| Front mounted ladder and viewing platform |
| Rear LED road lights |
| Front mounted scale can be viewed from both sides |
| Steel straw ring |
| Smooth tub shape for faster bale processing and mixing |
| 3 x 90mm load cells |
| Hydraulic brakes |
| Direct Coupled hydraulics |
| 2 speed gearbox |
| Standard Single axle tyres: 435/50 R19.5 |
| Standard Tandem axle tyres: 385/55 R22.5 |
The 20m³ Powermix Plus is a compact twin auger diet feeder available in both single and sprung tandem axle configurations, it has a capacity of approximately 10,000kg depending upon the dry matter of the feed. It is a short coupled machine able to navigate around tight buildings and requires a 125HP tractor.
The right front hydraulic door is operated via the tractor spoil valve. Single axle and tandem sprung axle versions are available. An additional left hand & centre mounted rear door is optional.
| Heavy duty stepped auger with stainless steel edging |
| 12.5mm thick S500 lower tub wall |
| 15mm thick S500 auger |
| Removable auger wear plates |
| Front mounted ladder and viewing platform |
| Rear LED road lights |
| Front mounted scale can be viewed from both sides |
| Steel straw ring |
| Smooth tub shape for faster bale processing and mixing |
| 3 x 90mm load cells |
| Hydraulic brakes |
| Direct Coupled hydraulics |
| 2 speed gearbox |
| Standard Single axle tyres: 435/50 R19.5 |
| Standard Tandem axle tyres: 385/55 R22.5 |
The 22m³ Powermix Plus is a compact twin auger diet feeder available in a sprung tandem axle configuration, it has a capacity of approximately 11,000kg depending upon the dry matter of the feed. It is a short coupled machine able to navigate around tight buildings and requires a 130HP tractor.
The right front hydraulic door is operated via the tractor spoil valve. An additional left hand & centre mounted rear door is optional.
| Heavy duty stepped auger with stainless steel edging |
| 12.5mm thick S500 lower tub wall |
| 15mm thick S500 auger |
| Removable auger wear plates |
| Front mounted ladder and viewing platform |
| Rear LED road lights |
| Front mounted scale can be viewed from both sides |
| Steel straw ring |
| Smooth tub shape for faster bale processing and mixing |
| 3 x 90mm load cells |
| Hydraulic brakes |
| Direct Coupled hydraulics |
| 2 speed gearbox |
| Standard Tandem axle tyres: 385/55 R22.5 |
Powermix Compact - Side Door
The new shape promotes the live mix of the ration and speeds up processing time.
To aid the replacement of wearing parts.
15mm S500 Steel with Stainless Steel Edging
To provide longevity to the tub.
The front ladder / platform allows the operator to asses the level of mix and to add small quantities of supplements.
Right side door, operated via tractor spoil valve.
A left hand door is an optional extra.
To prevent feeding out metal objects that could be present within the feed.
2 speed ranges
540rpm input low - 15.7rpm
1000rpm input low - 29rpm
1000rmp input high - 53.2rpm
Heavy duty oil level expansion tank
3 x 90mm Load Cells
Left Hand Door
An additional left hand door can be added to allow feeding on both sides, which is operated via the the tractor spoil valve.
Read more
Centre Rear door
To Allow feeding / discharge at the rear of the tub
Read more
2 Speed Gearbox Wired Remote
A wired remote allows the 2 speed gearbox to be changed between ranges from the comfort of the tractor cab.
Read more
Tungsten blades
To help maintain a sharp edge
Read more
DG-600 Programmable Scale
The DG-600 allows rations to be programmed & recorded into the scale.
Read more
DG-Remote Zero (DG400/600)
Remote control for scale via the tractor or handler
Read more
DG-Dina Tel Wireless Remote Display (DG600only)
Wireless display that can be mounted in the tractor or handler
Read more
Wired Remote scale head (DG400/600)
Additional display
Read more
GPRS- Data Transfer kit (DG600)
Allows transfer of data automatically without the use of a USB data key
Read more
Bluetooth Phone scale modem (DG600)
Allows the scale display on a Bluetooth device
Read more
External scale Power Pack
External power source when loading mixer without power ie no tractor coupled
Read more
Tandem Axle Air Brakes
The air-brake system improves the braking efficiency. hydraulic brake can allow be used if the tractor is not equipped.
Read more
Steering Axle with Hydraulic Brakes
Steering rear axle allows for greater maneuverability. The hydraulic brakes are powered via the tractor hydraulic braking system.
Read more
Steering Axle with Air Brakes
Steering rear axle allows for greater maneuverability. The air-brake system improves the braking efficiency. hydraulic brake can allow be used if the tractor is not equipped.
Read more
Wide Angle PTO
Allows the pto to be used whilst tractor is turning on a gentle radius.
Read more
385/55 R19.5 Low Profile Tandem Axle Tyre Option
Tandem axle tyre option
Read more
435/50 R19.5 Floatation
Tandem axle tyre option
Read more
18R 22.5 High Clearance
Single axle tyre option
Read more
235/75 R17.5 Duel wheel
Low profile option for single axle machines
Read more
If you have questions or require advice about the Powermix Plus – Side Door, or any of our other products, then contact us today.
| Standard Features | 16m³ | 18m³ | 20m³ |
|---|---|---|---|
| Capacity / Level | 8000kg* | 9000kg* | 10000kg* |
| Volume / Level | 16m³ | 18m³ | 20m³ |
| Tyre Size | 435/55R19.5 | 435/55R19.5 | 435/55R19.5 |
| Axle Type | Single | Single | Single |
| PTO Speed | 540rpm | 540rpm | 540rpm |
| HP Required | 110 | 120 | 130 |
| Unladen Weight | 6928Kg | 6960Kg | 7144Kg |
| Door Configuration | Front Left & Right | Front Left & Right | Front Left & Right |
| Door Operation | Hydraulic | Hydraulic | Hydraulic |
| Hydraulic Brakes | STD | STD | STD |
| LED Lights | STD | STD | STD |
| Adjustable Corner Knives | STD | STD | STD |
| Steel Straw Ring | STD | STD | STD |
| Hydraulic Control | Direct via Tractor | Direct via Tractor | Direct via Tractor |
| Number of Load Cells | 3 | 3 | 3 |
| Number of Augers | 2 | 2 | 2 |
| Number of Blades | 14 | 14 | 14 |
| Two Speed Gearbox | STD | STD | STD |
| Auger Magnet | STD | STD | STD |
| Electric 2 Speed Control | STD | STD | STD |
| Options | |||
| DG400 Basic Scale System | OPT | OPT | OPT |
| DG600 Prog. Scale System | OPT | OPT | OPT |
| DG Remote Zero | OPT | OPT | OPT |
| DG GPRS Data Transfer Kit | OPT | OPT | OPT |
| Remote Scale Head | OPT | OPT | OPT |
| Battery Pack for Scale | OPT | OPT | OPT |
| Wide Angle PTO | OPT | OPT | OPT |
| Tungsten Blades | OPT | OPT | OPT |
| Rear Centre Door | OPT | OPT | OPT |
| Corner Rear Door (LH) | N/A | N/A | N/A |
|
* Depending Upon Feed DM%
|
|||
| Standard Features | 16m³ | 18m³ | 20m³ | 22m³ |
|---|---|---|---|---|
| Capacity / Level | 8000kg* | 9000kg* | 10000kg* | 11000kg* |
| Volume / Level | 16m³ | 18m³ | 20m³ | 22m³ |
| Tyre Size | 385/55R22.5 | 385/55R22.5 | 385/55R22.5 | 385/55R22.5 |
| Axle Type | Tandem | Tandem | Tandem | Tandem |
| PTO Speed | 540rpm | 540rpm | 540rpm | 540rpm |
| HP Required | 110 | 120 | 130 | 140 |
| Unladen Weight | 7588Kg | 7620Kg | 7804Kg | 7953Kg |
| Door Configuration | Front Right | Front Right | Front Right | Front Right |
| Door Operation | Hydraulic | Hydraulic | Hydraulic | Hydraulic |
| Hydraulic Brakes | STD | STD | STD | STD |
| LED Lights | STD | STD | STD | STD |
| Adjustable Corner Knives | STD | STD | STD | STD |
| Steel Straw Ring | STD | STD | STD | STD |
| Hydraulic Control | Direct via Tractor | Direct via Tractor | Direct via Tractor | Direct via Tractor |
| Number of Load Cells | 3 | 3 | 3 | 3 |
| Number of Augers | 2 | 2 | 2 | 2 |
| Number of Blades | 14 | 14 | 14 | 16 |
| Two Speed Gearbox | STD | STD | STD | STD |
| Electric 2 Speed Control | STD | STD | STD | STD |
| Auger Magnet | STD | STD | STD | STD |
| Options | ||||
| DG400 Basic Scale System | OPT | OPT | OPT | OPT |
| DG600 Prog. Scale System | OPT | OPT | OPT | OPT |
| DG Remote Zero | OPT | OPT | OPT | OPT |
| DG GPRS Data Transfer Kit | OPT | OPT | OPT | OPT |
| Remote Scale Head | OPT | OPT | OPT | OPT |
| Battery Pack for Scale | OPT | OPT | OPT | OPT |
| Wide Angle PTO | OPT | OPT | OPT | OPT |
| Tungsten Blades | OPT | OPT | OPT | OPT |
| Right Hand Door | OPT | OPT | OPT | OPT |
| Rear Centre Door | OPT | OPT | OPT | OPT |
| Corner Rear Door (LH) | N/A | N/A | N/A | N/A |
| Air Brakes | OPT | OPT | OPT | OPT |
| Steering Axle with Hydrauilc Brakes | OPT | OPT | OPT | OPT |
| Steering Axle with Air Brakes | OPT | OPT | OPT | OPT |
|
* Depending Upon Feed DM%
|
||||

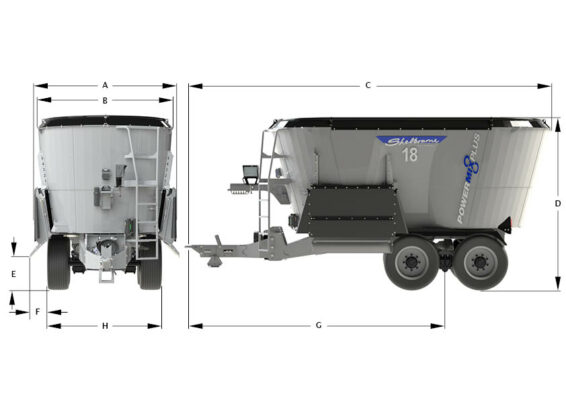

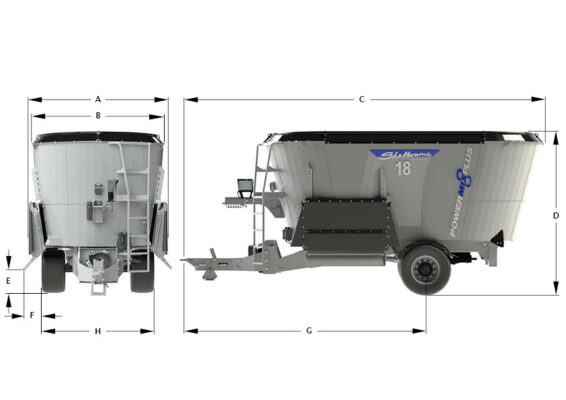

| Model | A | B | C | D | E | F | G | H |
|---|---|---|---|---|---|---|---|---|
| 16m³ 435/50 R19.5 | 2468mm / 8'1" | 2390mm / 7'10" | 6742mm / 22'2" | 2810mm / 9'3" | 540mm / 1'9" | 215mm / 9" | 4508mm / 14'10" | 2138mm / 7' |
| 18m³ 435/50 R19.5 | 2468mm / 8'1" | 2390mm / 7'10" | 6742mm / 22'2" | 2945mm / 9'8" | 540mm / 1'9" | 215mm / 9" | 4508mm / 14'10" | 2138mm / 7' |
| 20m³ 435/50 R19.5 | 2468mm / 8'1" | 2390mm / 7'10" | 6742mm / 22'2" | 3135mm / 10'3" | 540mm / 1'9" | 215mm / 9" | 4508mm / 14'10" | 2138mm / 7' |
| Model | A | B | C | D | E | F | G | H |
|---|---|---|---|---|---|---|---|---|
| 16m³ 385/55 R22.5 | 2468mm / 8'1" | 2390mm / 7'10" | 6742mm / 22'2" | 2925mm / 9'7" | 655mm / 2'2" | 241mm / 10" | 4740mm / 15'7" | 2086mm / 6'10" |
| 18m³ 385/55 R22.5 | 2468mm / 8'1" | 2390mm / 7'10" | 6742mm / 22'2" | 3060mm / 10' | 655mm / 2'2" | 241mm / 10" | 4740mm / 15'7" | 2086mm / 6'10" |
| 20m³ 385/55 R22.5 | 2468mm / 8'1" | 2390mm / 7'10" | 6742mm / 22'2" | 3250mm / 10'8" | 655mm / 2'2" | 241mm / 10" | 4740mm / 15'7" | 2086mm / 6'10" |
| 22m³ 385/55 R22.5 | 2468mm / 8'1" | 2390mm / 7'10" | 6742mm / 22'2" | 3428mm / 11'3" | 655mm / 2'2" | 241mm / 10" | 4740mm / 15'7" | 2086mm / 6'10" |
Looking for something specific?
Search our support area for individual model set-up guides and more...
Yes the Powermix Mixer Feeder has a sealed tub that allows water to be added to dry ingredients and high levels of liquid feeds to added to mixes.
Yes the powermix Feeder Wagon will take whole big bales of hay, straw and silage and chop them down to produce a mix.
Yes the feed out options on a Powermix Epress & Plus Feeder Wagon gives several options for feeding over high barriers. up to 5’5″
Yes, the machine should be operated in high gear with a 1000rpm tractor pto input and the three legs on the bottom of each auger will easily mix the smallest of rations
Yes, there are a number of different scale options that allow you to store rations as well as download data between the office PC and mixer scale
Yes, The powermix Mixer Feeder can be supplied with an independent power pack to run the diet computer and can be hitched up and started once your ingredients have been loaded.
You can find your local dealer by using our dealer search here or we can put you in touch with a dealer by contacting us here
